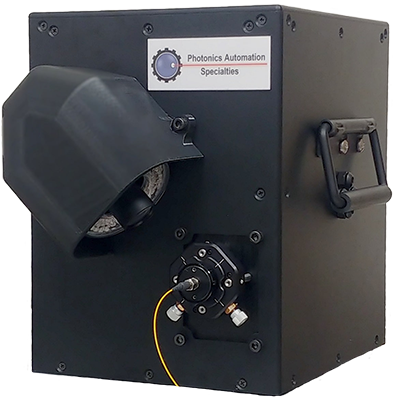

NFScan

$24,000.00 USD

Sale Sold out

USB3 real-time high-power (up to 500W) camera-based diverging beam profiler & metrology tool.

Continuously captures and analyzes both the near-field and far-field images for small (<1mm diameter) diverging sources such as fiber coupled lasers, single emitters, and TO-Cans.

Lead time of approximately 1 month.

Wavelength Range Standard: Wavelength (400 - 1100 nm) NIR-SWIR: Wavelength (600 - 1750 nm)

Power Range Low-Power: 1W or Less Mid-Power: 1W - 50W High-Power: 50W - 500W

View full details

Specifications

Maximum input power (CW): 500W
Maximum input NA: 0.30
Maximum source diameter: ~1mm
Dimensions: 250mm W x 325mm D x 250mm H

Outputs:

Water flow TTL signal (Mid and high-power options only)
Uncalibrated optical power analog out signal
General purpose optical taps (SMA): 2

Software:

Standalone application
.NET dll API to integrate with your application

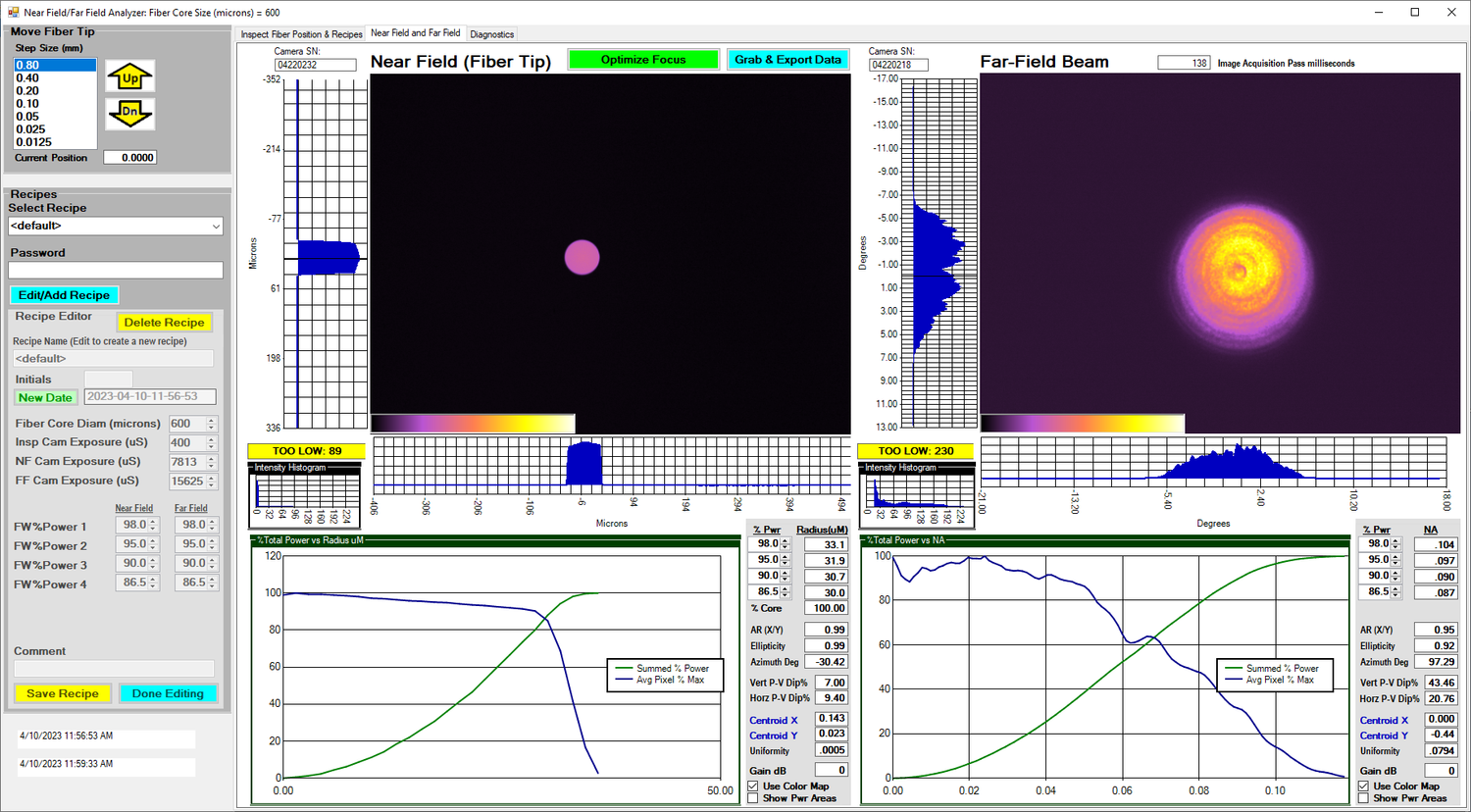

Application example showing a normal fiber coupled laser output

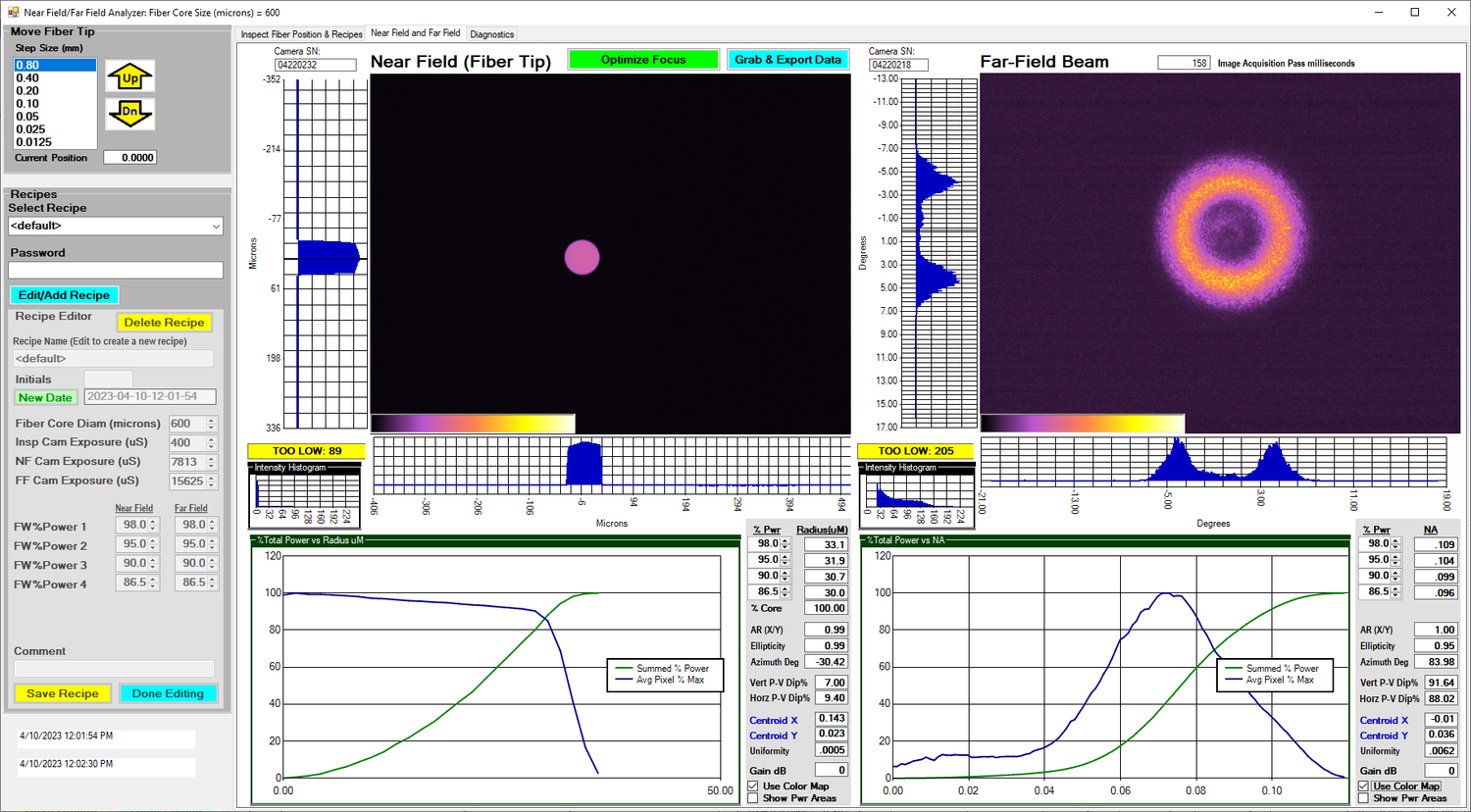

Application example showing a donut mode due to fiber misalignment
